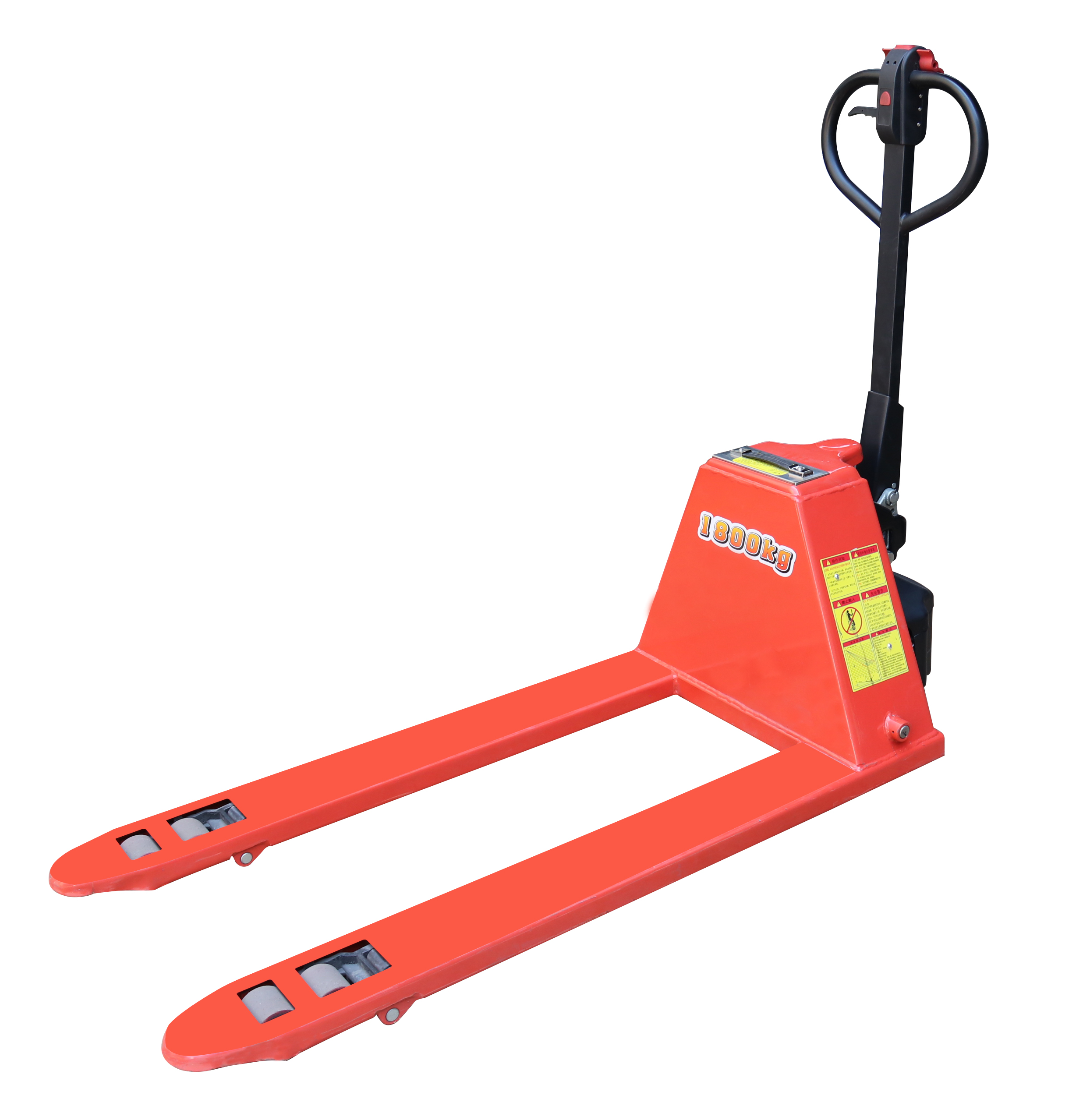

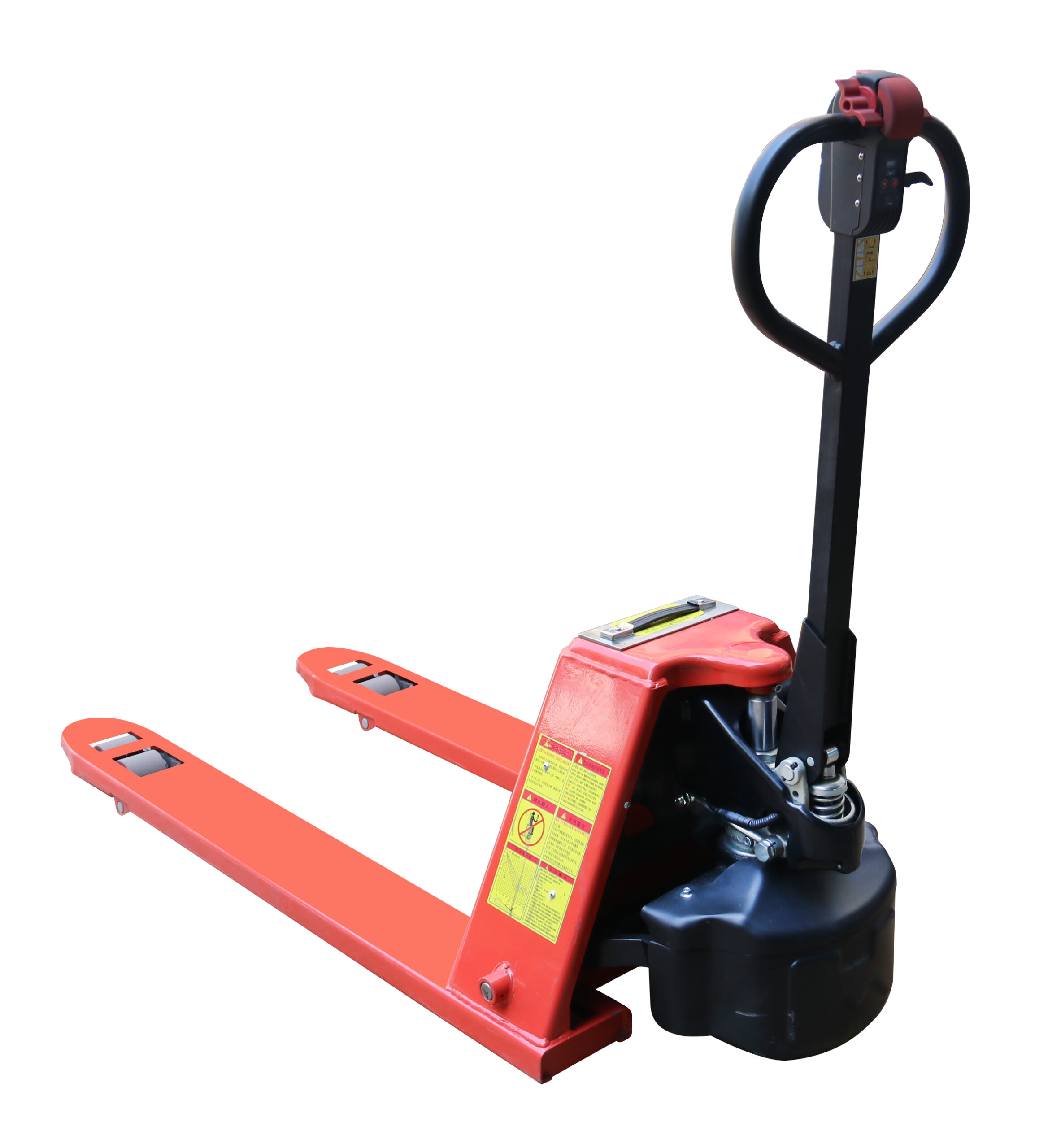

Palet eléctrico completo HD18 HM con batería de litio extraíble

As características da mesa de traballo xiratoria:

  • Handle integrated battery display and operation control.more convenient.
  • Drive unit with electromagnetic brake.
  • Comply with CE European safety standards.
  • Highly increase productivity and reduce operator fatigue, with smart size as a manual pallet jack. perfect for use in narrow & reduced spaces, small warehouses, manufactures, retail & transportation industries.



HD-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • The battery is light and easy to replace.lt can be replaced quickly in 20 seconds, can never be cut off.
  • 48v15ah lithium iron phosphate battery.

HQ-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • Large capacity battery,48v30ah lead acid battery.

HK-HM series

  • Strong steel structure design makes it more durable.
  • Large capacity battery,48v30ah lead acid battery.
i-Lift No.111140111114021111403111140411114051111406
ModeloHD18-HMHD20-HMHQ20-HMHQ25-HMHQ30-HMHK30-HM
Unidade de accionamentoEléctrico
Capacidade de cargakg(ib.)1800(3960)2000(4400)2000(4400)2500(5500)3000(6600)3000(6600)
Centro de cargamm (pulgadas)600(23.6)475(18.7)510(20)475(18.7)    510(20)475(18.7)510(20)
Overal Lengthmm (pulgadas)1610(63.4)1550(61)1620(63.8)1620(63.8)1690(66.5)1590(62.6)1660(65.4)
Overal Widthmm (pulgadas)680(26.8)550(21.7)680(26.8)550(21.7)    680(26.8)550(21.7)680(26.8)
Overal Heightmm (pulgadas)1265(49.8)1280(50.4)1280(50.4)1280(50.4)
Lonxitude da tenedormm (pulgadas)1220(48)1150(45.3)1220(48)1150(45.3)  1220(48)1150(45.3)1220(48)
Individual Fork Widthmm (pulgadas)160(6.3)160(6.3)160(6.3)160(6.3)
Overall Fork Widthmm (pulgadas)680(26.8)550(21.7) 680(26.8)550(21.7)           680(26.8)550(21.7) 680(26.8)
Max. Fork Heightmm (pulgadas)190(7.5)195(7.7)195(7.7)195(7.7)
Min. Fork Heightmm (pulgadas)75⑶80(3.1)80(3.1)80(3.1)
Front Load Rollermm (pulgadas)Φ75x70(3x2.8)Φ80x70(3.1x2.8)Φ80x70(3.1x2.8)Φ80x70(3.1x2.8)
Driving Wheelmm (pulgadas)Φ190x70(7.5x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)
Max. Travel Speedkm / h4.54.34.54.5
Service BrakeFreo electromagnético
Motive Powerkw0.750.7511.21.2
Capacidade da bateríaV / Ah48/1548/3048/30
CargadorINPUTiAC 100-240V~50/60Hz1.5A 150VA OUPUTzDC 54.6V 2A
Peso netokg (lb.)140(308)155(341)185(407)195(429)200(440)215(473)
40"GP550:60Units   680:48Units
